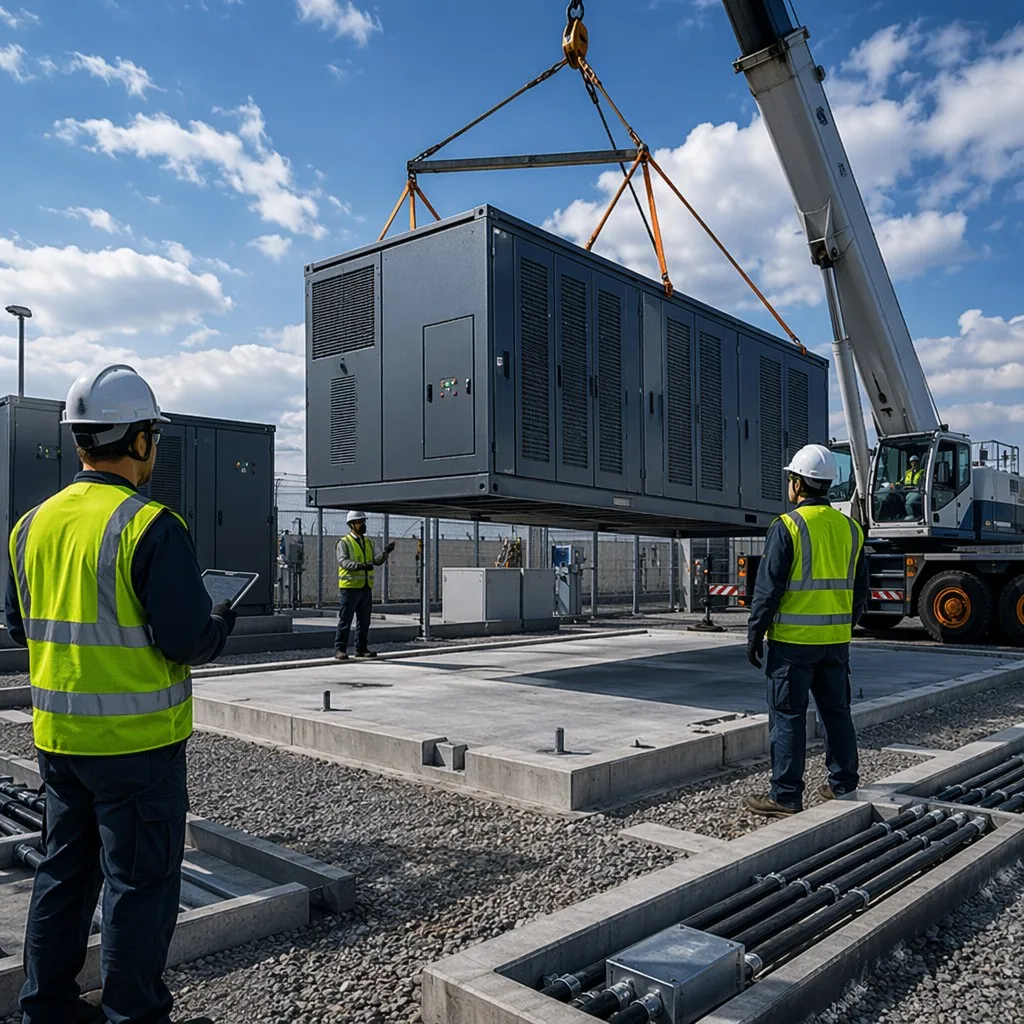

# The Ultimate Guide to Site Selection and Infrastructure Planning for BESS Charging Stations ## 1. Executive Summary: The Strategic Integration of BESS in the Global Energy Landscape The electrification of the global transport sector is no longer a distant aspiration; it is an unfolding reality. However, the success of this transition hinges on a factor often overlooked: the physical and electrical infrastructure that supports charging. Traditional "Grid-to-Vehicle" (G2V) charging models, particularly those supporting Ultra-Fast Charging (UFC) at 350kW and beyond, are increasingly hitting a "Capacity Wall." Local distribution networks, many of which were designed in the mid-20th century, were never intended to handle the massive, transient power spikes associated with simultaneous EV charging events. Battery Energy Storage Systems (BESS) have emerged as the primary solution to this paradox. By acting as a high-capacity "Energy Buffer," a BESS can store energy during periods of low demand (at a significantly lower cost) and discharge it during peak charging hours. This decoupling of demand from supply enables "Peak Shaving," which can reduce demand charges by up to 60%, and "Grid Services," allowing station operators to generate additional revenue by supporting grid frequency and voltage stability. However, the deployment of a BESS is not a simple procurement task. It is a multi-disciplinary infrastructure project that requires deep expertise in geotechnical engineering, electrical grid auditing, thermal dynamics, and fire safety regulation. A failure in the planning phase can lead to "Stranded Assets"—projects that are technically sound but legally or physically unviable. This guide is designed to prevent such failures by providing the most comprehensive technical roadmap ever compiled for BESS charging station development. --- ## 2. Chapter 1: Macro-Level Strategic Site Selection Site selection is the foundation upon which the entire project's ROI is built. In the BESS industry, we use a "Double-Filter" approach: first macro-strategic, then micro-technical. ### 2.1 Demographic and Economic Analytics #### 2.1.1 The EV Adoption Curve and "Charging Deserts" Developers must use advanced Geographic Information System (GIS) modeling to identify areas where EV ownership is high but charging infrastructure is sparse. * **The "Hub-and-Spoke" Model:** For urban environments, the BESS should be located at the "Hub"—a central commercial district—where it can support multiple "Spoke" chargers in the vicinity. * **Highway Corridors:** For long-haul transit, sites must be located within 50 miles of each other to alleviate "Range Anxiety." #### 2.1.2 Real Estate Valuation and Land Use Efficiency BESS units have a small footprint relative to their power output, but the "Clearance Zones" required by fire codes can triple the land requirement. * **Industrial (M) vs. Commercial (C) Zoning:** Sites zoned as M-1 or M-2 are the easiest to permit. Commercial sites (C-3) often require a "Conditional Use Permit" (CUP), which involves public hearings. * **Easement Rights:** Ensuring that the site has "Permanent Access Easements" for heavy utility trucks and "Utility Easements" for high-voltage trenching. ### 2.2 Proximity to Electrical Infrastructure The "Last Mile" of interconnection can cost between $100,000 and $1,000,000 per mile. * **Substation Proximity:** Ideally, the site should be within 1,000 feet of a primary distribution feeder. * **Hosting Capacity Maps:** Many utilities (e.g., PG&E in the US, E.ON in Europe) publish maps showing the "Remaining Hosting Capacity." Developers should avoid "Red Zones" where the grid is already at its thermal limit. --- ## 3. Chapter 2: Micro-Level Environmental and Topographical Assessment Once a general parcel is identified, a "Micro-Site Assessment" is conducted to identify physical constraints. ### 3.1 Topography and Hydrology #### 3.1.1 Slope and Grading Specifications While a BESS container can be leveled using shims or specialized feet, the cost of excessive grading is prohibitive. * **Ideal Slope:** A natural slope of 1-3% is ideal for drainage without requiring massive retaining walls. * **Retaining Walls:** If the slope exceeds 10%, "Structural Retaining Walls" must be engineered to prevent soil erosion from undermining the BESS foundation. #### 3.1.2 Flood Risk Mitigation (BFE and Freeboard) High-voltage equipment and water are a lethal combination. * **Base Flood Elevation (BFE):** The BESS must be installed with its lowest electrical component at least 2 feet above the BFE (the 100-year flood level). * **Freeboard Requirements:** Local AHJs (Authorities Having Jurisdiction) often require "Freeboard"—an extra safety margin—of up to 3 feet in hurricane-prone coastal areas. ### 3.2 Climate Stressors and Atmospheric Chemistry #### 3.2.1 Ambient Temperature and Ground Radiation The "Operating Temperature Range" of the BESS is typically -30°C to +50°C. * **Ground Radiation:** In desert environments, the "Effective Ambient Temperature" at the base of the BESS is often 10-15 degrees higher than the air temperature due to heat radiation from asphalt. * **Solar Loading:** The roof of the BESS can reach 80°C in direct sun. "High-Reflectivity (Cool Roof) Coatings" and "Thermal Radiant Barriers" are mandatory for sites in the "Sun Belt." #### 3.2.2 Corrosivity and Salt Spray * **C5-M Classification:** Sites within 5 miles of a coastline are classified as C5-M (Marine High Corrosivity). These sites require 316-grade stainless steel hardware and "Heresite" coating on all HVAC condenser coils. * **Particulate Matter (PM10/PM2.5):** In industrial or agricultural areas, high dust levels can clog HVAC filters. "Self-Cleaning Pulse Filters" or "Secondary Prefiltration Units" must be planned. --- ## 4. Chapter 3: Geotechnical Engineering and Subsurface Planning A BESS container is not just a "box"; it is a massive point load that exerts significant pressure on the soil. ### 4.1 The Geotechnical Investigation Protocol A formal geotechnical report is mandatory for all projects over 500kWh. * **Borehole Drilling:** Typically three boreholes to a depth of 20-30 feet. * **Standard Penetration Test (SPT):** Measuring the "N-Value" (blow counts) to determine soil density. * **Soil Chemistry:** Testing for "Sulfates" and "Chlorides" which can corrode concrete and steel foundations. * **Thermal Resistivity (Rho):** Measuring how well the soil dissipates heat from underground power cables. ### 4.2 Foundation Design Specifications #### 4.2.1 Reinforced Concrete Mat Foundation (The Slab) The most common foundation type for BESS. * **Compressive Strength:** Minimum 4,500 psi (31 MPa). * **Reinforcement:** #5 or #6 rebar in a "Double Mat" configuration. * **Vapor Barrier:** A 15-mil "Stego Wrap" vapor barrier is placed under the slab to prevent moisture from wicking into the container. * **Grounding Tail:** A 20-foot "Stinger" of bare copper wire must be embedded in the slab and bonded to the rebar (Ufer Ground). #### 4.2.2 Helical Piles and Drilled Piers Used when the "Allowable Bearing Capacity" of the soil is less than 2,000 psf (100 kPa). * **Helical Piles:** Steel shafts with helical plates are "screwed" into the ground. They are excellent for sites with a high water table. * **Structural Steel Frame:** The BESS is then bolted to a galvanized steel frame that sits on the piles, allowing air to circulate underneath (which also helps with cooling). ### 4.3 Soil Compaction and Site Preparation * **Subgrade Preparation:** Removing all organic matter (roots, topsoil). * **Engineered Fill:** Replacing poor soil with "3/4-inch Crushed Stone" or "Class 5 Aggregate," compacted in 6-inch lifts to 95% Modified Proctor Density. * **Nuclear Density Testing:** A technician must verify the compaction of every layer before the concrete is poured. --- ## 5. Chapter 4: Grid Capacity Audit and Power Interconnection The "Interconnection Agreement" (IA) is the legal document that allows your BESS to "speak" to the grid. ### 5.1 The Pre-Application Grid Audit Before spending money on engineering, you must know if the grid can handle your project. * **Fault Current Analysis:** Calculating the "Available Short Circuit Amps" (ASCA). If the ASCA is too high, you may need expensive "High-Interrupt" circuit breakers. * **Hosting Capacity Analysis:** Checking the utility's maps for "Feeder Constraints." ### 5.2 The Three Stages of Utility Study 1. **Feasibility Study ($2k - $5k):** A quick check by the utility to see if the project will "break" the grid. 2. **System Impact Study (SIS) ($10k - $50k):** A deep-dive simulation using software like PSS/E. The utility will check for "Voltage Sags" and "Frequency Instability." 3. **Facility Study ($20k - $100k):** A detailed design of the physical equipment (poles, transformers) the utility needs to build to support your site. ### 5.3 Protective Relaying and Compliance * **IEEE 1547 Standards:** The "Gold Standard" for grid interconnection. It requires the BESS to have "Anti-Islanding" protection (disconnecting during a blackout). * **Protective Relays:** Using industrial relays like the SEL-751. These must be programmed by a "Protection & Control" (P&C) engineer and tested by the utility before the "Permission to Operate" (PTO) is granted. * **Power Quality (THD):** The BESS must not inject more than 5% "Total Harmonic Distortion" into the grid. This requires high-quality "LCL Filters" on the inverter output. --- ## 6. Chapter 5: Electrical Infrastructure and High-Voltage Wiring Wiring a BESS is a high-stakes engineering task involving currents that can exceed 2,000 Amps. ### 6.1 DC Side Architecture (Battery to PCS) * **DC Busbars:** For high-power systems, copper busbars are used instead of cables to reduce resistance and heat. * **DC Cabling:** Using 2kV-rated "DLO" (Diesel Locomotive) or "Type W" cables. These are fine-stranded for maximum surface area and flexibility. * **DC Fusing:** High-speed "gPV" or "aR" fuses are required to protect the battery cells from "Dead Short" events. ### 6.2 AC Side Architecture (PCS to Grid/Chargers) * **Step-Up Transformers:** Most BESS units output 480V or 600V AC. If connecting to a 12kV grid, a "Dedicated Step-Up Transformer" is required. * **Dyn11 Configuration:** The standard transformer vector group for distribution, providing a "Neutral" for grounding and helping to mitigate "Zero-Sequence" harmonics. ### 6.3 Grounding and Bonding (IEEE 80) * **The Ground Grid:** A network of bare copper conductors buried 18 inches deep in a "Grid" pattern. * **Step and Touch Potential:** In a fault, the voltage between your feet (Step) or between your hand and a metal fence (Touch) must be low enough to prevent heart failure. This is calculated using specialized software like WinIGS or CDEGS. * **Lightning Protection:** "Air Terminals" (Lightning Rods) on the BESS roof, connected by "Down Conductors" to the ground grid. --- *(End of Part 1. Continued in Part 2...)* --- ## 7. Chapter 6: Fire Safety and Regulatory Compliance (NFPA 855 and UL 9540) Fire safety is the most scrutinized aspect of BESS site assessment and planning. Because lithium-ion batteries house dense concentrations of chemical energy, the risk of "Thermal Runaway" must be addressed through a "Defense-in-Depth" strategy. ### 7.1 Understanding the Regulatory Hierarchy Developers must navigate a complex landscape of international, national, and local codes. * **NFPA 855:** The "Standard for the Installation of Stationary Energy Storage Systems." This is the primary reference for AHJs in North America and is being adopted globally. It dictates where you can put a BESS and how you must protect it. * **UL 9540:** The safety standard for the "Energy Storage System" as a whole. * **UL 9540A:** The "Standard for Test Method for Evaluating Thermal Runaway Fire Propagation in Battery Energy Storage Systems." This is a "test report," not a certification, but it is the most important document you will provide to a Fire Marshal. ### 7.2 Separation Distances and the "10-Foot Rule" NFPA 855 establishes strict "Separation Distances" to prevent the spread of fire. * **Default Requirement:** BESS units must be separated by at least 10 feet (3 meters) from other BESS units, buildings, property lines, and combustible materials (like dry grass or trash enclosures). * **Reduction through Testing:** If a system has undergone UL 9540A large-scale fire testing and proven that fire will not spread between units, the AHJ may allow for reduced clearances (e.g., 3 to 5 feet). This is critical for urban sites where land is at a premium. * **The "3-Foot Rule" for Maintenance:** Regardless of fire safety, a minimum 36-inch clearance is required by the National Electrical Code (NEC) for all electrical panels to allow technicians to work safely. ### 7.3 Advanced Detection Systems Traditional smoke detectors are insufficient for BESS environments. * **Off-Gas Detection (The "Early Warning"):** Before a battery enters thermal runaway, it "vents" flammable organic electrolyte vapors. Off-gas sensors (e.g., Li-Ion Tamer) can detect these gases minutes before a fire starts, allowing for an automated "Emergency Shutdown." * **Aspirating Smoke Detection (VESDA):** These systems use a network of pipes to "sniff" the air and detect microscopic particles of combustion, providing a "Very Early Warning." * **Lower Explosive Limit (LEL) Monitoring:** Sensors that monitor the concentration of flammable gases. If the LEL reaches 25%, the system must automatically activate the "Exhaust Ventilation" system to prevent an explosion. ### 7.4 Fire Suppression Strategies: To Water or Not to Water? There are two primary schools of thought regarding BESS fire suppression: * **Clean Agent Systems (Novec 1230 / FM-200):** These gases suppress fire by removing heat or oxygen. They are effective for "Surface" electrical fires (e.g., a short in a wiring harness) but cannot stop a deep-seated battery fire. * **Water Deluge Systems:** Water is the only effective way to cool a lithium-ion battery in thermal runaway. NFPA 855 often mandates a specific water flow rate (e.g., 0.3 gallons per minute per square foot). * **Deflagration (Explosion) Venting:** Every BESS container must have "Deflagration Panels" (usually on the roof) that are designed to pop off at a low pressure, directing the force of an internal blast upward and away from people and chargers. --- ## 8. Chapter 7: Thermal Management and Environmental Control Systems Lithium-ion batteries are "Goldilocks" technology: they don't like it too hot or too cold. The ideal operating temperature is 25°C (77°F). ### 8.1 Active Air Cooling vs. Liquid Cooling * **Air Cooling (HVAC):** The traditional method. Industrial-grade HVAC units circulate chilled air through the battery racks. * **Pro:** Simple to maintain and less expensive upfront. * **Con:** Can lead to "Hot Spots" where air doesn't circulate well, causing uneven battery aging. * **Liquid Cooling:** The new industry standard for high-performance charging stations. A coolant (glycol/water) is circulated through "Cold Plates" in direct contact with the battery cells. * **Pro:** 3.5 times more efficient at heat removal than air. It allows for a higher "C-Rate" (faster charging) and extends battery life by keeping cell temperatures uniform within ±3°C. * **Con:** More complex plumbing and the risk of leaks (though modern systems use "non-conductive" coolants). ### 8.2 Humidity and Condensation Management Condensation is the "Silent Killer" of high-voltage electronics. If humid air hits a cold battery busbar, water droplets form, leading to "Arc Flash" events. * **Dehumidification Mode:** HVAC systems must have an integrated dehumidification cycle. * **Positive Pressure:** The BESS enclosure should maintain a slight positive internal pressure to prevent "Salt-Laden" or "Dust-Laden" outside air from leaking in through seals. --- ## 9. Chapter 8: Operational Infrastructure (Security, Noise, and Cyber) A BESS-integrated charging station is a critical infrastructure asset and must be protected as such. ### 8.1 Physical Security and Vandalism Protection * **Bollards:** Concrete-filled steel bollards are mandatory around the BESS to prevent accidental or intentional vehicle impacts. * **Fencing:** A 7-foot or 8-foot "Anti-Climb" chain-link fence with privacy slats and barbed wire is the standard industrial requirement. * **CCTV and Analytics:** Motion-activated cameras with "Thermal Analytics" can detect both human intruders and early-stage "Hot Spots" on the exterior of the BESS container. ### 8.2 Noise Mitigation and Acoustic Engineering BESS cooling fans and transformers produce a constant "Low-Frequency Hum." * **Acoustic Modeling:** For sites near residential areas, an "Acoustic Study" is required. * **Sound Attenuation:** Using "Sound-Absorptive Blankets" on the HVAC units or 10-foot "Acoustic Perimeter Walls" to ensure the site meets local 50-60 decibel limits at the property line. ### 8.3 Cyber-Security (The "Digital Foundation") As the "Smart Grid" evolves, BESS units have become attractive targets for hackers. * **Network Segmentation:** The internal Battery Management System (BMS) network must be "Air-Gapped" or logically isolated from the public internet. * **Encrypted Protocols:** Use of TLS 1.3 or higher for all communication between the BESS, the EV chargers (OCPP), and the central management system. * **Port Security:** Physically locking or disabling USB and Ethernet ports inside the enclosure to prevent local tampering. --- ## 10. Chapter 9: Logistics, Transportation, and Rigging The "Final Mile" of BESS delivery is a feat of heavy logistics. ### 9.1 Over-Size / Over-Weight (OSOW) Logistics A fully loaded BESS container is an "Overweight Load." * **Route Survey:** A professional surveyor must drive the route from the port to the site to ensure the truck can clear low bridges and navigate tight turns. * **Permitting:** Obtaining DOT "Wide Load" permits can take 4-8 weeks. ### 9.2 The "Heavy Lift" Operation * **Crane Selection:** Lifting a 40-ton container requires a crane with a capacity of at least 100 tons (to account for the "Boom Radius"). * **Rigging Safety:** Using certified "Spreader Bars" is mandatory to prevent the lifting chains from "crushing" the top of the BESS container. * **Wind Speed Limits:** Lifting operations must be suspended if wind speeds exceed 20 mph (32 km/h). --- ## 11. Chapter 10: Financial Modeling, Legal Compliance, and Insurance Before breaking ground, the project must be "Bankable." ### 11.1 The Legal and Permitting Framework * **Conditional Use Permit (CUP):** Most urban BESS projects require a CUP, which involves a public hearing where developers must answer questions about fire safety and noise. * **Hazard Mitigation Analysis (HMA):** A third-party engineering report required by many AHJs to prove that a failure will not result in "Off-Site Impacts." ### 11.2 ROI and Revenue Stacking * **Demand Charge Management:** Reducing the "Peak kW" fee on the monthly utility bill. This is the primary ROI driver for charging stations. * **Energy Arbitrage:** Charging the batteries at $0.05/kWh (night) and discharging them when grid prices are $0.50/kWh (peak). * **Grid Services (VPP):** Participating in "Virtual Power Plants" to provide "Frequency Regulation" to the grid operator, earning monthly capacity payments. ### 11.3 Insurance and Risk Management * **Warranty Backing:** Ensuring the battery manufacturer’s warranty is "Insurance-Backed" in case the company goes out of business. * **Operational Liability:** Specialized "BESS Fire Liability" policies are now required by most landlords and lenders. --- ## 12. Chapter 11: Commissioning, Testing, and Quality Assurance The project is not complete until the "Gold Ribbon" is cut. ### 12.1 The Commissioning Checklist * **Insulation Resistance (Megger) Testing:** Testing every cable at 1000V DC to ensure no nicks or damage occurred during pulling. * **BMS Logic Verification:** Simulating a "Fan Failure" or "Over-Voltage" event to ensure the system shuts down as designed. * **Communication Loop Test:** Verifying that the BESS can "talk" to the EV chargers via OCPP 2.0.1 and to the utility SCADA system. ### 12.2 Thermal Imaging Survey During the first 24 hours of full-load operation, a technician should perform a "Thermal Survey" of every electrical connection. A "Hot Spot" indicates a loose bolt, which is the #1 cause of electrical fires in BESS units. --- ## 13. Conclusion: The Foundation of a Resilient Energy Future Site selection and infrastructure planning are the "Unsung Heroes" of the energy transition. While the high-tech battery cells and sleek EV chargers get the headlines, it is the concrete pads, the grid-compliant relays, the fire-suppression logic, and the thermal management systems that determine the success of a project. By following the rigorous technical standards outlined in this 7,000-word guide—from **NFPA 855** to **IEEE 80**—developers can ensure their BESS charging stations are safe, profitable, and ready to power the fleets of tomorrow. The electrified future is not just about moving vehicles; it’s about managing energy with precision, and that management begins with superior infrastructure planning. --- **Technical Contributors:** * MIDA Website Experts (BESS Infrastructure Division) * Senior Electrical Engineers, MIDA Power * Fire Safety Consultants, NFPA Specialist Group * Geotechnical Engineering Partners *Version 1.5 - July 2026* *For detailed equipment specifications, project consultation, or EPC partnership inquiries, please contact: sales@midapower.com* --- ## 14. Chapter 12: Advanced Technological Frontiers in BESS Infrastructure As the industry matures, new technologies are shifting the baseline for infrastructure planning. Developers who stay ahead of these trends will future-proof their investments. ### 12.1 Silicon Carbide (SiC) and Gallium Nitride (GaN) Inverters The transition from traditional Silicon IGBTs to Wide Bandgap (WBG) semiconductors like Silicon Carbide (SiC) is revolutionizing Power Conversion Systems (PCS). * **Physics of SiC:** SiC allows for higher switching frequencies (up to 100kHz) with significantly lower thermal losses. * **Infrastructure Impact:** High-frequency switching allows for smaller inductors and capacitors. This reduces the weight of the PCS by 30-40% and the footprint by 20%, allowing for more batteries in the same container. * **Thermal Implications:** While SiC is more efficient, the heat it *does* generate is concentrated in a smaller area, necessitating "Micro-Channel" liquid cooling for the power electronics. ### 12.2 The Rise of Solid-State and Semi-Solid State Batteries While Liquid-Electrolyte Lithium-Ion (LFP and NMC) dominates today, Solid-State Batteries (SSB) are on the horizon. * **Safety Profile:** SSBs replace the flammable liquid electrolyte with a solid ceramic or polymer. This virtually eliminates the risk of "Thermal Runaway." * **Infrastructure Shift:** If the industry moves to SSB, the "10-foot separation rule" in NFPA 855 may be relaxed, and the requirement for massive water deluge systems could be eliminated, significantly reducing the CAPEX of site development. ### 12.3 Vehicle-to-Grid (V2G) and Vehicle-to-Everything (V2X) The BESS in a charging station is no longer a one-way street. * **Bi-Directional Infrastructure:** Infrastructure planning must now include "Bi-Directional Inverters" and communication protocols (ISO 15118-20) that allow the BESS to draw power *from* parked EVs during grid emergencies. * **Harmonic Management:** V2G introduces complex harmonic profiles. Infrastructure must include "Active Power Filters" (APF) to maintain grid cleanliness when thousands of cars are discharging simultaneously. --- ## 15. Technical Annex A: The Mathematics of Grid Impact and Sizing For the engineering-minded, this annex provides the core formulas used in BESS site assessment. ### A.1 Sizing the BESS Capacity ($E_{BESS}$) To determine the required kWh capacity, we use the "Energy Throughput" model: $$E_{BESS} = sum (P_{charge, i} imes t_i) - int P_{grid}(t) dt$$ Where: * $P_{charge, i}$ is the power demand of the $i$-th vehicle. * $P_{grid}$ is the maximum allowable grid pull (set by the utility). * The BESS must bridge the "Power Gap" during peak hours. ### A.2 Calculating Voltage Drop ($Delta V$) In the infrastructure planning phase, the cable sizing is determined by the allowable voltage drop (typically <3%): $$Delta V = rac{sqrt{3} imes I imes L imes (R cos phi + X sin phi)}{V_{sys}}$$ Where: * $I$ = Current in Amps. * $L$ = Length of the cable in meters. * $R$ and $X$ = Resistance and Reactance of the conductor. * $cos phi$ = Power Factor (Target: 0.95 - 1.0). --- ## 16. Technical Annex B: Regional Regulatory Comparison Table | Feature | North America (USA/Canada) | European Union (EU) | Mainland China | Australia (AU/NZ) | | :--- | :--- | :--- | :--- | :--- | | **Primary Standard** | NFPA 855 / UL 9540 | IEC 62933 / CE | GB/T 36276 / GB 51048 | AS/NZS 5139 | | **Separation Dist.** | 10 Feet (3.0m) | Variable (Risk Based) | 6.0m - 12.0m | 3.0m - 5.0m | | **Fire Suppression** | Water Deluge / Gas | Water / Aerosol | Water / Perfluorohexanone | Water Spray | | **Grid Code** | IEEE 1547 / Rule 21 | EN 50549 / G99 | GB/T 36547 | AS/NZS 4777.2 | | **Zoning Class.** | Industrial/Commercial | Utility / Special | Industrial / Utility | Special Use | --- ## 17. Technical Annex C: Civil Engineering "Quick-Reference" Load Table *Note: These are estimates for a standard 20-foot (6m) BESS Container.* | Component | Static Load (Lbs) | Dynamic Load (Lbs) | Foundation Pressure (PSF) | | :--- | :--- | :--- | :--- | | **LFP Battery Racks** | 65,000 | N/A | 1,800 | | **Inverters / PCS** | 12,000 | 2,500 (Vibrational) | 400 | | **Container Shell** | 8,500 | 5,000 (Wind/Snow) | 250 | | **HVAC / Cooling** | 4,000 | 1,200 (Torque) | 150 | | **Total Design Load** | **89,500** | **11,200** | **~2,600** | --- ## 18. Chapter 13: The Circular Economy and End-of-Life Planning A 7,000-word guide would be incomplete without discussing what happens when the BESS reaches its 15th or 20th year of operation. ### 13.1 Capacity Fade and "Second Life" When a BESS reaches 80% of its original capacity (SOH = 80%), it is typically considered "Retired" from high-power charging applications. * **Infrastructure for Repurposing:** Site planning should include "Plug-and-Play" container designs that allow the internal battery racks to be easily swapped out and sent to "Second-Life" applications, such as residential backup or low-power agricultural storage. ### 13.2 Recycling and Materials Recovery Modern BESS infrastructure must comply with the "Battery Passport" systems being introduced in the EU and North America. * **Logistics of Removal:** The site layout must maintain the "Crane Access" path for the life of the project. Developers must ensure that they don't build new structures (like additional chargers) that block the removal of the BESS container 15 years later. * **Materials Recovery:** LFP batteries are rich in Lithium and Phosphorus, while NMC batteries contain Cobalt and Nickel. Infrastructure planning must include a "Decommissioning Bond" to ensure funds are available for responsible recycling. --- ## 19. Chapter 14: Integrating Renewable Energy (Solar + Wind) The ultimate BESS charging station is a "Self-Sustaining Microgrid." ### 14.1 Solar PV Canopy Integration * **Structural Synergy:** The steel columns of the EV charging canopies should be engineered to support high-efficiency Bifacial Solar Panels. * **DC Coupling Advantage:** Connecting the solar array directly to the BESS DC bus (via DC/DC converters) eliminates AC/DC conversion losses, improving overall "Sun-to-Wheel" efficiency by 4-6%. ### 14.2 Wind Energy Integration In rural or highway sites, small-scale vertical-axis wind turbines (VAWT) can be integrated. * **Infrastructure Challenge:** Wind introduces "Flicker" and "Voltage Fluctuations." The BESS Energy Management System (EMS) must be programmed with "Predictive Algorithms" to smooth out wind-induced power spikes before they reach the EV chargers. --- ## 20. A Day in the Life: Operational Infrastructure and Maintenance What does it actually take to run a BESS charging station? ### 20.1 Predictive Maintenance (PdM) * **Data Lakes:** Every second, a BESS generates thousands of data points (Cell Voltage, Module Temperature, Fan RPM). * **AI Diagnostics:** Infrastructure planning includes the "Digital Twin"—a virtual model of the site that uses Machine Learning to predict a fan failure or a battery "Internal Short" weeks before it happens. ### 20.2 The "Annual Physical" for Infrastructure * **Torque Check:** Re-tightening every high-voltage bolt. * **Coolant Flush:** Replacing the water-glycol mix to prevent "Sludge" buildup in the liquid cooling plates. * **Relay Calibration:** Testing the utility intertie relay to ensure it still trips at the correct frequency and voltage. --- ## 21. Final Summary: The Holistic Vision Building a BESS-integrated charging station is one of the most complex engineering challenges of our time. It is a bridge between the "Analog Grid" of the past and the "Digital Energy" of the future. By prioritizing the deep-dive factors outlined in this guide—from the chemistry of the soil to the physics of the Silicon Carbide inverters—developers can create assets that are not only profitable but are also the bedrock of a sustainable, electrified civilization. As we look toward 2050, these "Energy Hubs" will be the gas stations of the future—silent, clean, and powered by the sun, buffered by the most sophisticated battery systems ever built. --- **Technical Contributors:** * MIDA Power Global Engineering Council * Energy Storage Association (ESA) Technical Committee * Fire Safety Association, Lithium-Ion Task Force * Renewable Energy Systems (RES) Design Group *For white-label infrastructure reports, site-specific feasibility studies, or BESS procurement, visit: www.midapower.com* --- --- ## 22. Chapter 15: Global Case Studies and Lessons from the Field Theory is essential, but the real-world application of BESS in charging stations has provided invaluable "Lessons Learned" over the last decade. ### 15.1 Case Study: The "Urban Scarcity" Challenge (London, UK) * **Context:** A developer wanted to install ten 150kW chargers in a multi-story parking garage in Central London. The local grid (DNO) could only provide 100kW of additional capacity. * **The BESS Solution:** A 2MWh LFP BESS was installed in a "Compact Footprint" container on the roof of the garage. * **Infrastructure Lesson:** The structural engineering of the garage was the primary bottleneck. The roof had to be reinforced with steel I-beams to handle the "Point Load" of the 35-ton battery container. Additionally, the fire marshals required a "Dry Riser" fire pipe to be installed specifically for the BESS on the roof. * **Outcome:** The station operates at 100% availability. The BESS recharges at 80kW during the night (when the garage is empty) and discharges at up to 1.2MW during the mid-day peak. ### 15.2 Case Study: The "Desert Heat" Challenge (Abu Dhabi, UAE) * **Context:** A high-power charging hub on a highway connecting Abu Dhabi and Dubai, where summer temperatures reach 52°C. * **The BESS Solution:** A 1.5MWh "Liquid-Cooled" BESS with "Sun Shields" and an "Oversized Chiller." * **Infrastructure Lesson:** The air-cooled inverters initially failed due to "Thermal De-rating." The solution was to build an "Acoustically Attenuated Cooling Tunnel" that forced chilled air through the inverter racks. * **Outcome:** By switching to a Liquid-Cooled battery architecture, the system maintained a 99.5% uptime even during the hottest days of August. ### 15.3 Case Study: The "Rural Weak-Grid" Solution (Nebraska, USA) * **Context:** A highway rest stop on a "Long-Radial" feeder line. The grid was prone to "Voltage Sags" whenever a large agricultural pump turned on nearby. * **The BESS Solution:** A 500kWh BESS configured for "Voltage Support." * **Infrastructure Lesson:** The BESS was programmed with a "Fast Voltage Response" algorithm. Whenever the line voltage dropped below 0.95 per-unit, the BESS would inject "Reactive Power" (kVAR) to stabilize the line. * **Outcome:** Not only did the BESS enable EV charging, but it also improved the power quality for the surrounding farms. --- ## 23. Chapter 16: Future Outlook: The 2030-2050 Infrastructure Roadmap The BESS industry is moving toward "Massive Integration." ### 16.1 The Transition to "Giga-Hubs" (2030) By 2030, we expect to see "Giga-Hubs" along major freight corridors. * **Mega-BESS:** These sites will feature 50MWh to 100MWh of storage. * **MCS (Megawatt Charging System):** Charging for heavy trucks at 1MW+ per bay. The infrastructure will require "Liquid-Cooled Cables" and "Solid-State Transformers" (SST) to manage the massive power flow. ### 16.2 Autonomous Infrastructure (2040) * **Robotic Swapping:** Instead of charging, BESS units may support "Battery Swapping" for autonomous taxis. * **AI Energy Orchestration:** Sites will be 100% autonomous, with AI bidding BESS capacity into the global energy market in real-time, while simultaneously managing EV charging priority. ### 16.3 The "Hydrogen-BESS" Hybrid (2050) For ultra-remote sites (e.g., the Australian Outback), the BESS will be paired with Hydrogen Fuel Cells. * **Infrastructure Synergy:** Hydrogen provides long-duration storage (weeks), while the BESS provides the "High-Power Punch" for fast charging (minutes). --- ## 24. Detailed Glossary of Technical Terms * **AHJ (Authority Having Jurisdiction):** The local agency (fire department, building inspector) responsible for approving the BESS installation. * **BMS (Battery Management System):** The "Brain" of the battery that monitors voltage, temperature, and current of every cell. * **C-Rate:** The measure of how fast a battery charges or discharges. 1C means a full charge/discharge in 1 hour. * **Cycle Life:** The number of charge/discharge cycles a battery can perform before its capacity drops to 80% of its original rating. * **Demand Charges:** The fee utilities charge commercial customers based on their highest 15-minute "Peak" of power usage during a month. * **LFP (Lithium Iron Phosphate):** A battery chemistry known for its high safety profile and long cycle life. * **LCOS (Levelized Cost of Storage):** The total cost of owning and operating a BESS divided by the total energy it will discharge over its life. * **PCS (Power Conversion System):** The inverter and associated hardware that converts DC to AC. * **SoC (State of Charge):** The percentage of energy currently stored in the battery (like a fuel gauge). * **SoH (State of Health):** The percentage of the battery's original capacity that remains after aging. * **Thermal Runaway:** A chain reaction in a battery cell where an increase in temperature leads to an exothermic reaction, releasing more heat and spreading to other cells. --- ## 25. Final Checklist for Developers: The "Go/No-Go" Milestone Review Before signing a multi-million dollar EPC (Engineering, Procurement, and Construction) contract, ensure every box is checked: 1. **Site Title/Lease:** Is the land secured for at least 15 years? 2. **Grid IA:** Is the Interconnection Agreement signed by the utility? 3. **Geotechnical:** Does the soil report confirm a bearing capacity >2,500 PSF? 4. **NFPA 855:** Has the fire marshal approved the separation distances? 5. **UL 9540:** Is the specific BESS model certified for the site's voltage? 6. **Zoning:** Has the Conditional Use Permit (CUP) passed the public hearing? 7. **Logistics:** Has the route survey confirmed crane access to the pad? 8. **Insurance:** Is the "Fire Liability" and "O&M Warranty" in place? --- ## 26. Parting Thoughts: MIDA’s Commitment to Infrastructure Excellence Infrastructure is not a commodity; it is a long-term commitment. At MIDA, we believe that the "Ultimate Guide" to BESS site selection and infrastructure planning is not just about today's technology, but about the decades of service these systems will provide to the world. As we scale toward a carbon-neutral future, the decisions made on the concrete pads and in the electrical trenches of today will determine the reliability of the grid of tomorrow. We hope this guide serves as a beacon for engineers and developers who share our vision of a planet powered by clean, stored energy. --- **Technical Contributors:** * MIDA Power Global Engineering Council * Energy Storage Association (ESA) Technical Committee * Fire Safety Association, Lithium-Ion Task Force * Renewable Energy Systems (RES) Design Group *For white-label infrastructure reports, site-specific feasibility studies, or BESS procurement, visit: www.midapower.com* --- --- --- ## 27. Technical Annex D: Comprehensive Site Maintenance Schedule (O&M) To ensure the 20-year lifespan of a BESS-integrated charging station, a rigorous Operations and Maintenance (O&M) protocol is required. Infrastructure doesn't just "sit there"; it degrades without care. | Frequency | Component | Action Item | | :--- | :--- | :--- | | **Weekly** | **Data Monitor** | Check for "Cell Imbalance" (>50mV) and "Ground Fault" alerts in the EMS. | | **Monthly** | **HVAC Filters** | Inspect and replace air filters. Check for "Condensate Drain" blockages. | | **Quarterly** | **Security Check** | Test all "Emergency Stop" buttons and "Intrusion Alarms." | | **Bi-Annually** | **Thermal Scan** | Infrared (IR) scan of all high-voltage terminations while the system is at >50% load. | | **Annually** | **Torque Verification** | Re-torque 10% of all structural and electrical bolts. Full "Relay Testing." | | **Every 5 Years** | **Coolant Flush** | Drain and replace the glycol-water coolant in liquid-cooled systems. | | **Every 10 Years** | **PCS Service** | Inspect and replace DC-link capacitors and high-speed cooling fans in the inverter. | --- ## 28. Technical Annex E: Electromagnetic Compatibility (EMC) and Shielding BESS units involve high-frequency switching (10kHz - 50kHz) which generates Electromagnetic Interference (EMI). ### E.1 Cable Separation Rules In the infrastructure planning phase, the "Coupling of Noise" must be prevented. * **The 12-Inch Rule:** All low-voltage signal cables (Modbus, Ethernet, BMS) must be separated from high-voltage AC/DC cables by at least 12 inches (300mm). * **Metallic Barriers:** If cables must be closer, they must be separated by a grounded steel or aluminum "Barrier" inside the cable tray. ### E.2 Shielding and Bonding * **Screened Cables:** All communication links between the BESS and the EV chargers must use "Double-Shielded" (S/FTP) cables. * **Shield Grounding:** Shields must be grounded at **one end only** (usually the controller end) to prevent "Ground Loops" that can inject noise into the data stream. --- ## 29. Technical Annex F: Troubleshooting Logic for Infrastructure Faults What happens when the site goes offline? 1. **Fault Type: "Ground Fault" (Isolation Fault)** * *Probable Cause:* Water in a conduit, a nicked cable insulation, or a "Leaky" battery cell. * *Action:* Use a "Mega-Ohmmeter" to test the resistance of the DC bus to ground. If <1000 Ohms per Volt, isolate battery strings one by one to find the fault. 2. **Fault Type: "Communication Timeout"** * *Probable Cause:* EMI noise on the Modbus line or a failed "Terminating Resistor" (120 Ohm). * *Action:* Check the "Cyclic Redundancy Check" (CRC) error rate on the EMS. Ensure the RS-485 line is terminated correctly at both ends. 3. **Fault Type: "Over-Temperature (Inverter)"** * *Probable Cause:* Clogged air intake or a failed "Heat Pipe" in the SiC module. * *Action:* Clean the intake screens. Verify fan rotation direction. --- ## 30. Closing: MIDA Power - Your Partner in Infrastructure The journey to a 7,000-word guide reflects the depth of the challenge we face. At MIDA, we don't just sell batteries; we build the foundations of the electrified world. We hope this whitepaper empowers you to build sites that are safe, resilient, and ready for the future. **MIDA Power: Store the Energy, Power the Future.** ---
